The MalaysiaHM6264 is a 64k bit static RAM organized in 8kwords × 8 bits. It realizes higher performance and low power consumption by 1.5µm CMOS process technology. Packaged in 450 mil SOP (width of footprint), 600 mil plastic DIP, 300 mil plastic DIP, the device is available for high-density mounting. Characteristic • High speed Fast access time: 85/100 ns (max) • Low consumption Standby: 10 µW (typical) Operation: 15 mW (typical) (f = 1 MHz) • Single 5V supply • Fully static memory No clock or sync strobe required • Fair access and cycle times • Common data input and output Tri-state output • Directly compatible with TTL All entrances and exits • Battery backup operation capability - Yes it works for slot machines

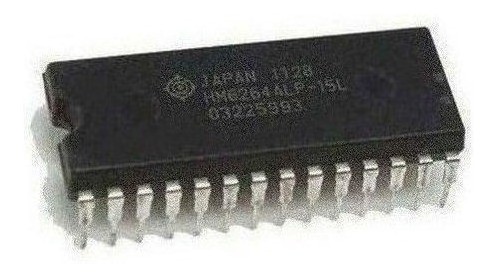

6264P-15 Static Ram memmory IC
The MalaysiaHM6264 is a 64k bit static RAM organized in 8kwords × 8 bits. It realizes higher performance and low power consumption by 1.5µm CMOS process technology. Packaged in 450 mil SOP (width of footprint), 600 mil plastic DIP, 300 mil plastic DIP, the device is available for high-density mounting. Characteristic • High speed Fast access time: 85/100 ns (max) • Low consumption Standby: 10 µW (typical) Operation: 15 mW (typical) (f = 1 MHz) • Single 5V supply • Fully static memory No clock or sync strobe required • Fair access and cycle times • Common data input and output Tri-state output • Directly compatible with TTL All entrances and exits • Battery backup operation capability - Yes it works for slot machines
